$338.90

Overview

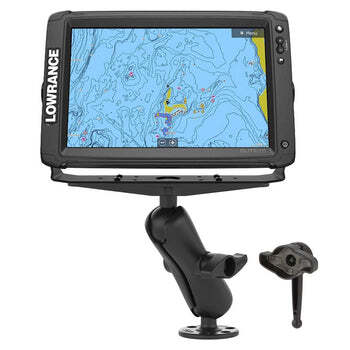

The RAM-D-111-KNOB9HU consists of a 3.68" diameter round base, STANDARD length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

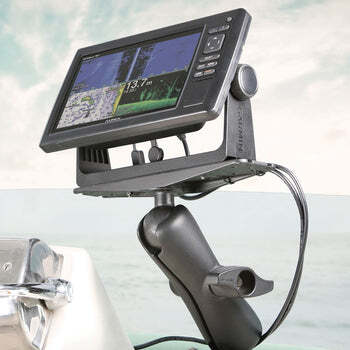

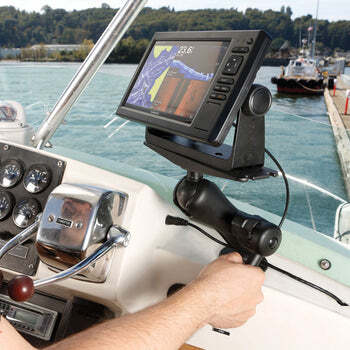

The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Included with this mount is the RAM Hi-Torq™ Wrench; designed to be used with the knob found on "D" size ball arms and mounts.

The wrench matches the shape of the knob and lets you give the arm an extra tight grip. This wrench was originally made for the military when using the RAM mounts in cold weather, and the knob could not be tightened by hand.

  • What screws are used to attach the RAM Mount to the gimbal bracket?

    Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.

  • What are the 4 shoulder washers used for?

    The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball plate.

Additional Information

SKU ram-d-111-knob9hu
Barcode # 793442949661
Brand RAM Mounts

The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

hardware included:

(4) .312" x .187" Shoulder Washers

product dimensions:

Overall Height: 11.5"

socket to socket length:

6.88"

hole pattern:

See Drawings

plate size:

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

ball size:

D Size (2.25")

weight capacity:

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

Compatibility

  • echoMAP 70DV
  • ECHOMAP Ultra 122sv
  • ECHOMAP Ultra 126sv
  • GPSMAP 740s
  • GPSMAP 1020xs
  • GPSMAP 1040xs
  • GPSMAP 1222 xsv Touch
  • GPSMAP 1242xsv Touch
  • Fishfinders and GPS Chartplotters
  • HDS Carbon 9
  • HDS Carbon 12
  • Hook²-12
  • Elite-9 CHIRP
  • Elite-9 Ti
  • Elite-9 Ti²
  • Elite-12 Ti
  • Elite-12 Ti²
  • Fishfinders and GPS Chartplotters
