$287.95

Overview

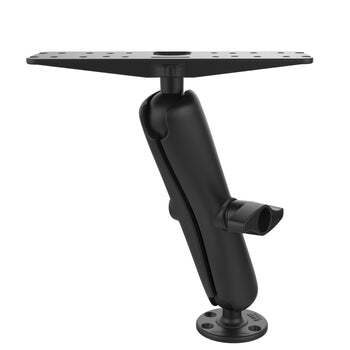

The RAM-D-111U-E consists of a 3.68" diameter round base, LONG length double socket arm and 11" x 3" rectangular plate. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

The rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Additional Information

SKU RAM-D-111U-E
Barcode # 793442939105
Brand RAM Mounts

The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

hardware included:

(4) .312" x .187" Shoulder Washers

product dimensions:

Overall Height: 16.03"

socket to socket length:

11.41"

hole pattern:

See Drawings

plate size:

Top Plate: 3" x 11"
Bottom Plate: 3.68" Diameter

ball size:

D Size (2.25")

weight capacity:

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

Compatibility

  • ECHOMAP Ultra 122sv
  • ECHOMAP Ultra 126sv
  • GPSMAP 1222 xsv Touch
  • GPSMAP 1242xsv Touch
  • Fishfinders and GPS Chartplotters
  • HDS Carbon 9
  • HDS Carbon 12
  • Elite-9 CHIRP
  • Elite-9 Ti
  • Elite-9 Ti²
  • Elite-12 Ti
  • Elite-12 Ti²
  • Fishfinders and GPS Chartplotters
