Quick-Grip 15W Wireless Charging Holder with Hardwire Power Cable (RAM-HOL-UN14WB-V7M-1)

$329.95

~~$355.00~~

Overview

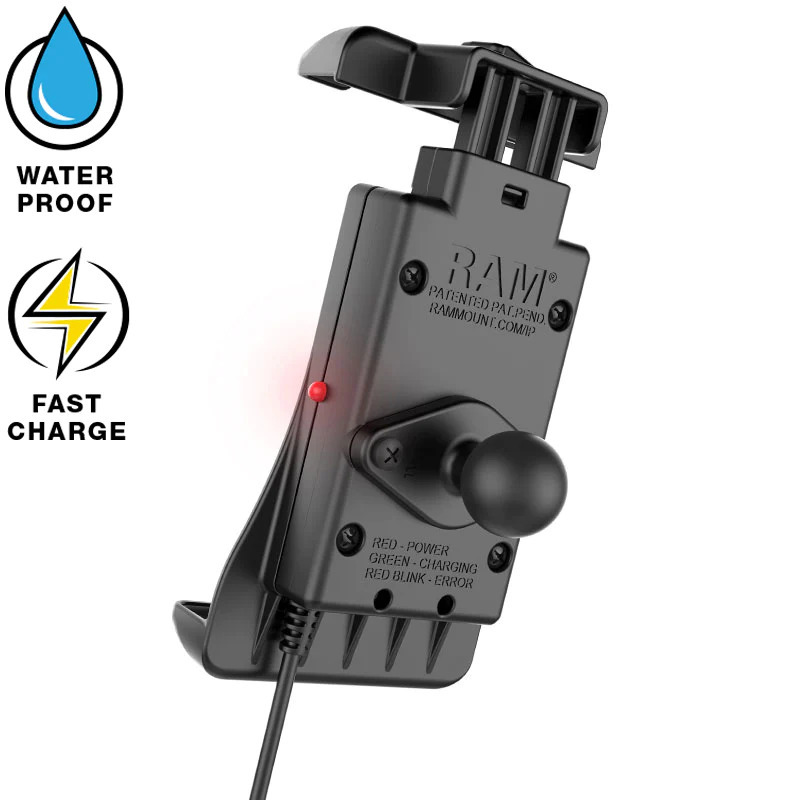

The RAM Quick-Grip Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging.

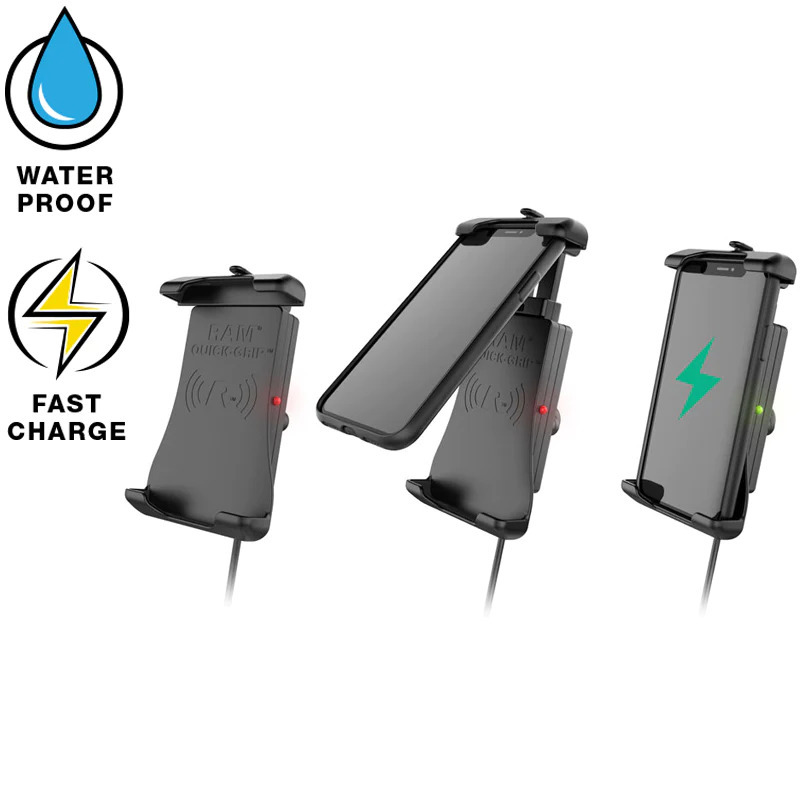

Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit.

This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it's within the listed compatible dimensions.

For added security and peace of mind, a device tether is included that's recommended for outdoor applications.This RAM Quick-Grip Wireless kit for motorcycles includes a B size diamond base featuring a 1" rubber ball - perfect for attaching to your choice of B size RAM double socket arm.

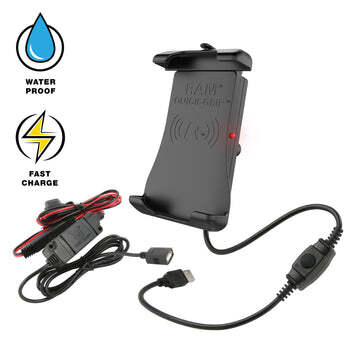

The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger. This new 15W version replaces old 10W part number RAM-HOL-UN14WB-V7M.

iPhone 12, iPhone 13 and iPhone 14 products support a new and proprietary wireless charging standard not supported in this product. Please look to the RAM-HOL-UN15WBU series to support these newer iPhones.

Additional Information

SKU	RAM-HOL-UN14WB-V7M-1
Barcode #	793442920325
Brand	RAM Mounts

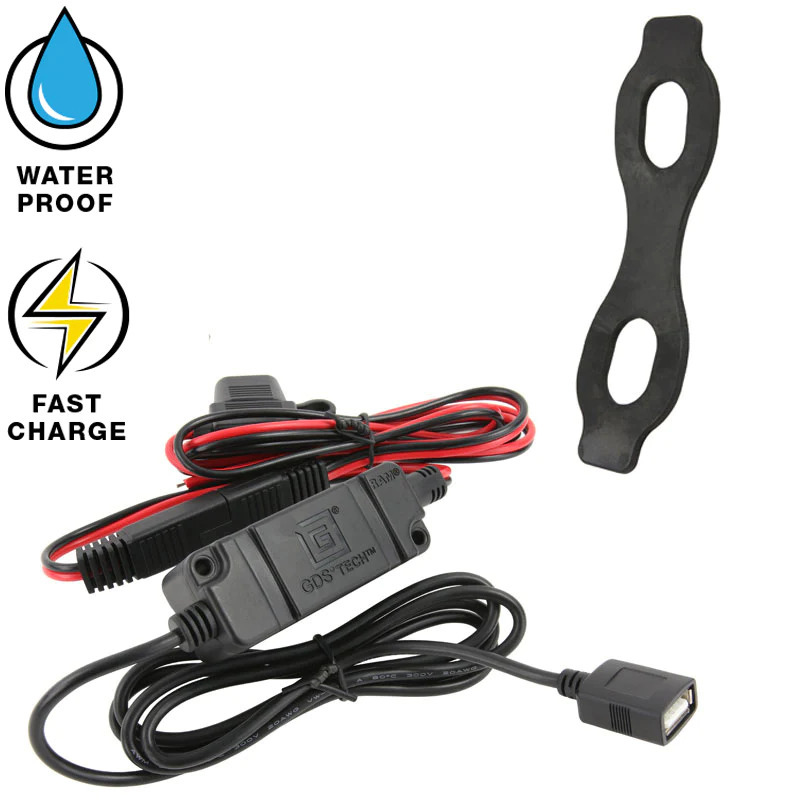

hardware included:

(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties

holder dimensions:

Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite
Stainless steel

packaging type:

Retail Box

power specifications:

Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies

operating temperature:

0°C to +37.7°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

certifications:

CE Certification
E-Mark Certification
RCM Certification
FCC Certification

Warranty:

1 year warranty

Weight:

1.29 lb

Additional Information:

This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.

Exposure to vibrations, like those generated by high-powered motorcycle
