$155.00

Overview

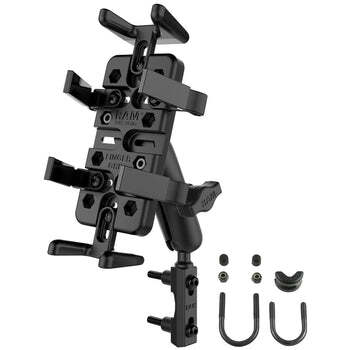

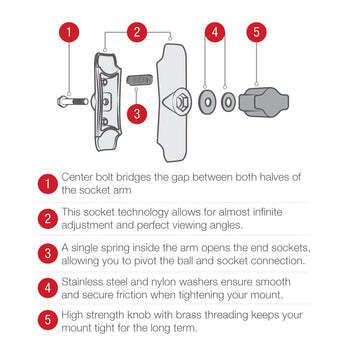

The RAM-B-174-UN4U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, diamond adapter base and high strength universal Finger Grip™ cradle.

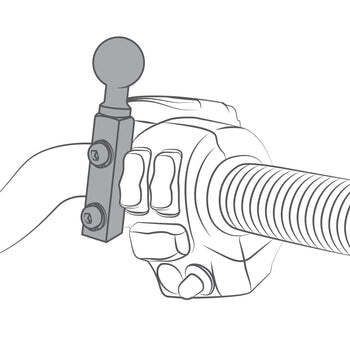

The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit.

To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".

Additional Information

SKU ram-b-174-un4u
Barcode # 793442910524

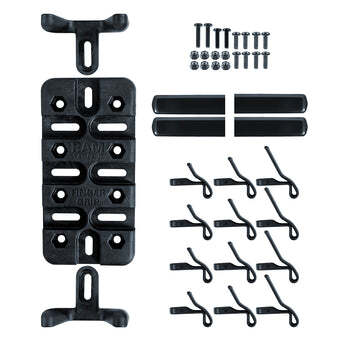

HARDWARE INCLUDED

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS

Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

Compatibility

  • Alpha 100
  • Astro 900 System
  • Delta Sport XC
  • Delta Upland XC
  • Delta XC
  • eTrex Touch 25
  • eTrex Touch 35
  • eTrex Touch 35t
  • GPSMAP 66 Series
  • inReach Explorer+
  • inReach SE+
  • Montana 700
  • Montana 700i
  • Montana 750
  • Montana 750i
  • PRO Control
  • Sport PRO
  • CT40
