Quick-Grip Wireless Charging Handlebar Mount with Charger (RAM-B-149Z-A-UN14W-V7M)

$309.00

Overview

The RAM Quick-Grip Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place.

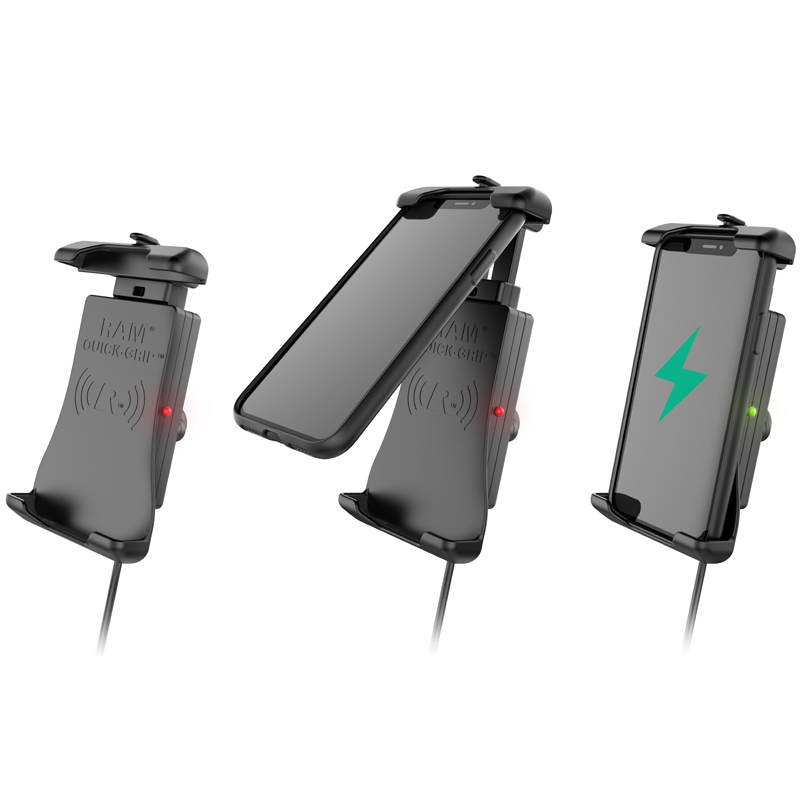

To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it's within the listed compatible dimensions. For added security and peace of mind, a device tether is included that's recommended for outdoor applications.

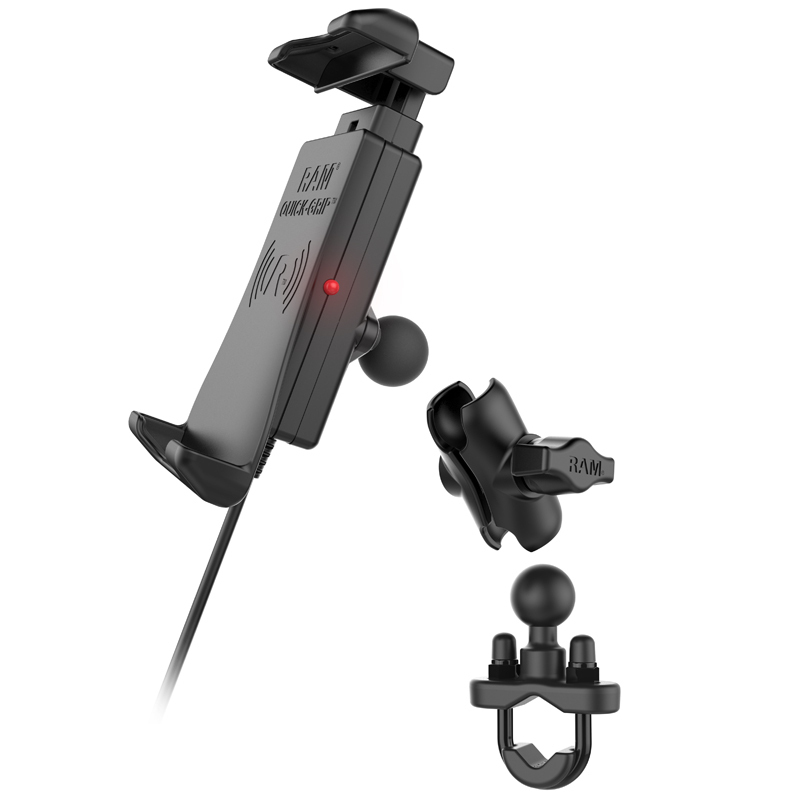

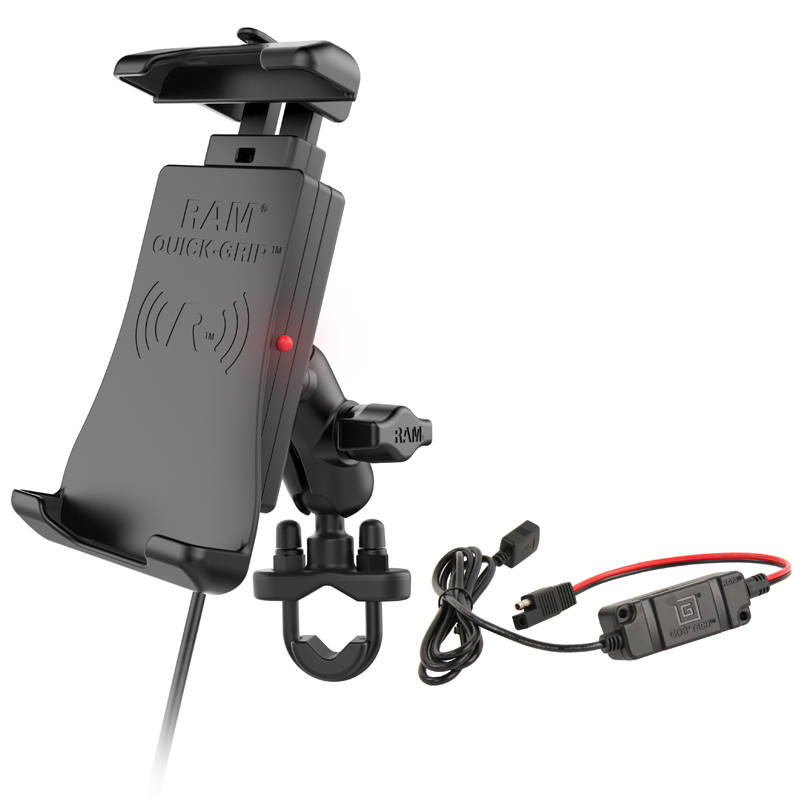

This RAM Quick-Grip Wireless handlebar kit includes a B size diamond base featuring a 1" rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5" to 1.25" in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use.

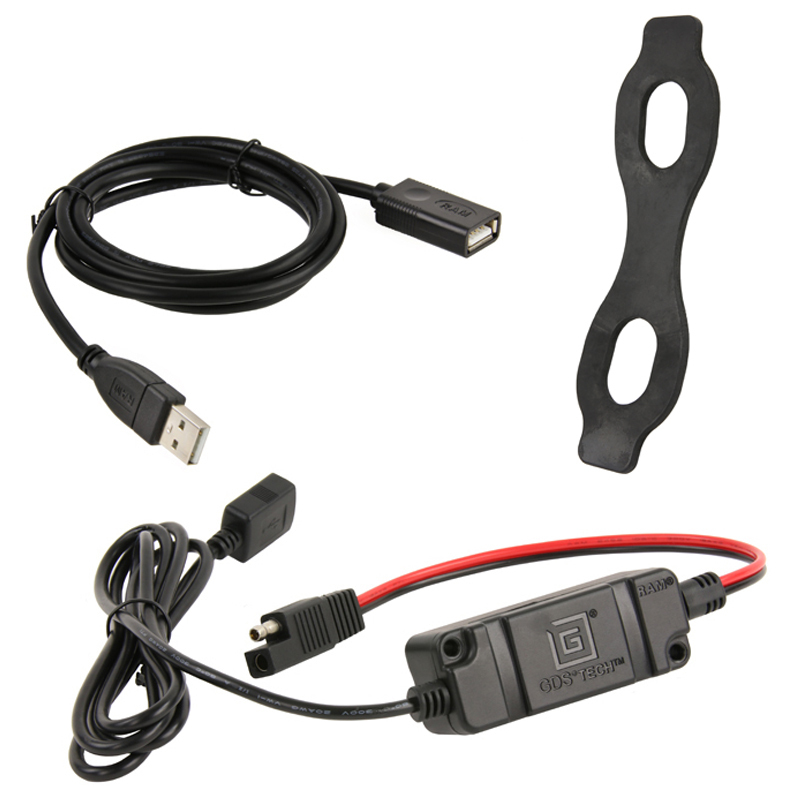

For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger. Provides a maximum of 10W charging output.

iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product. Please look to the RAM-HOL-UN15WBU series to support these newer iPhones.

Additional Information

SKU	RAM-B-149Z-A-UN14W-V7M
Brand	RAM Mounts

hardware included:

(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions:

Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"

clamp range:

.5" - 1.25" diameter

socket to socket length:

1.75"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite
Stainless steel

power specifications:

Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies

input connector:

USB Type-A Male

input cable length:

20" with optional 1.2M extension cable

operating temperature:

0°C to +37.7°C

regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
