Overview

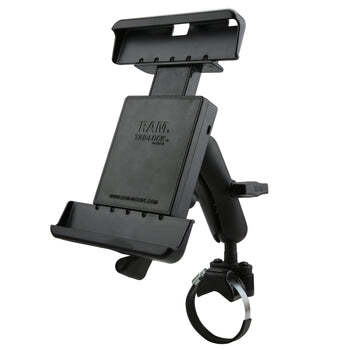

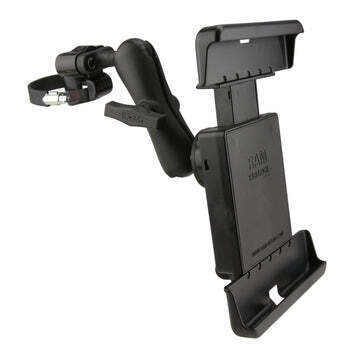

This heavy duty ATV/UTV mount is the perfect solution for securing most 10" tablets with case to virtually any roll bar or handlebar. Designed for a clean installation, the hose clamp base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base.

Safely concealing a strap clamp in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal u-bolt, allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the u-bolt.

The included RAM® Tab-Lock™ tablet holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications.

The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Additional Information

SKU ram-231z-2-tabl25u
Barcode # 793442014338
Brand RAM Mounts

hardware included:

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions:

Height Range: 9.64" - 12.32"
Width Range: 6.13" - 7.4"
Depth Range: .13" - .7"

clamp range:

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Compatibility

  • Venue 11 Pro
  • Pro Slate 10.1
  • IdeaTab Lynx K3011
  • Surface 2
  • Surface 3
  • Surface Pro
  • Surface Pro 2
  • Galaxy Tab 4 10.1 with Case
  • Galaxy Tab A 10.1 (2019) with Case
  • Galaxy Tab E 9.6 with Case
  • Galaxy Tab S 10.5 with Case
  • Vaio Tap 11
