Overview

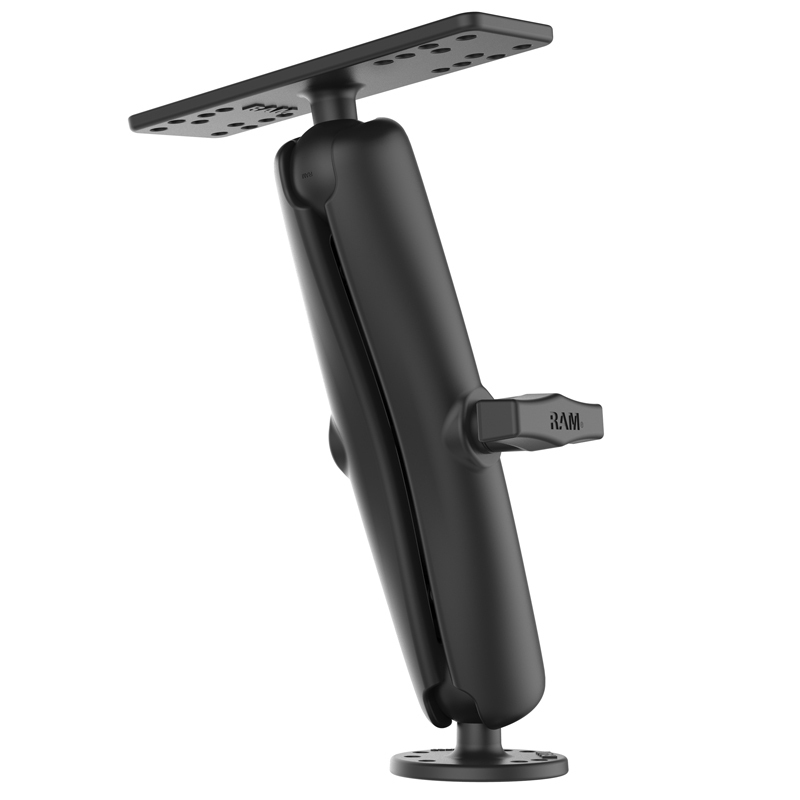

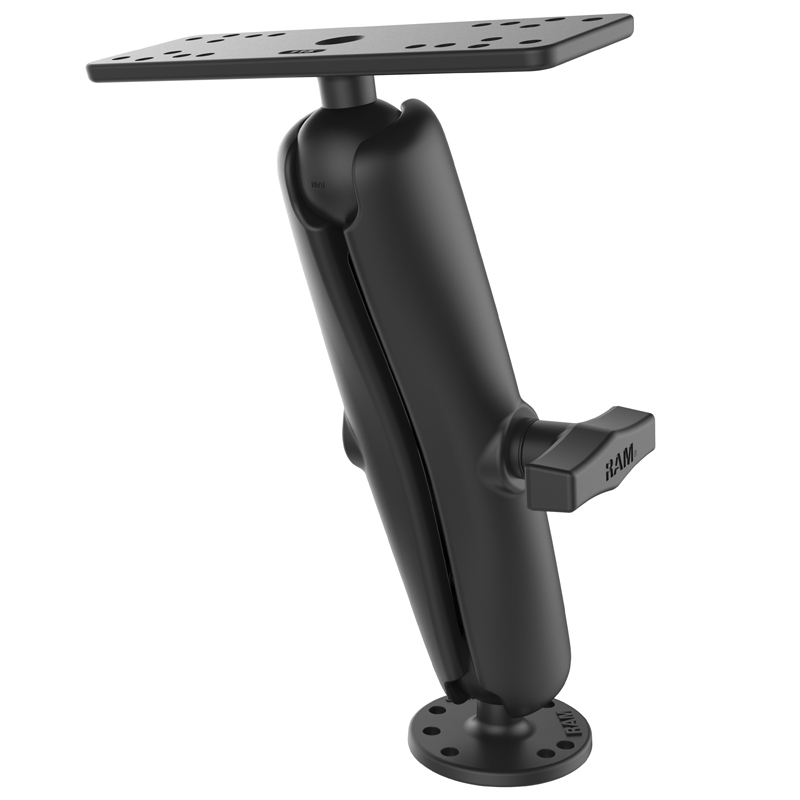

Universal kit clamped mounting with rectangular and round plates, longer clamp section than standard clamp. The RAM-111U-D consists of a 2.5" diameter round base that contains the universal AMPS hole pattern, 9 inch double socket arm and 6.25" x 2" rectangle base.

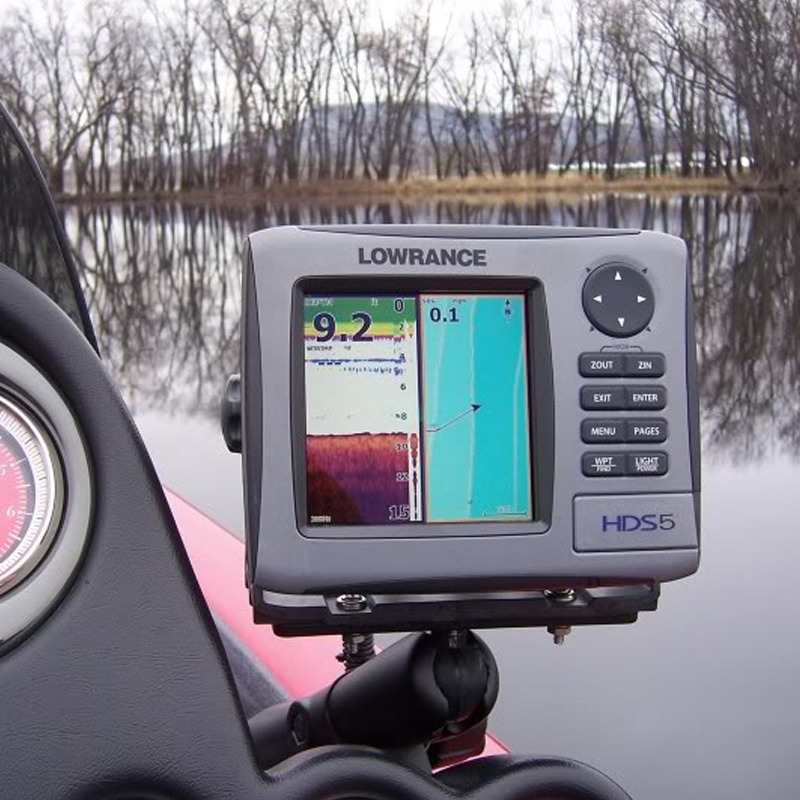

The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Additional Information

SKU RAM-111U-D
Barcode # 793442001567
Brand RAM Mounts

product dimensions

Overall Height: 10.85"

socket to socket length

8"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

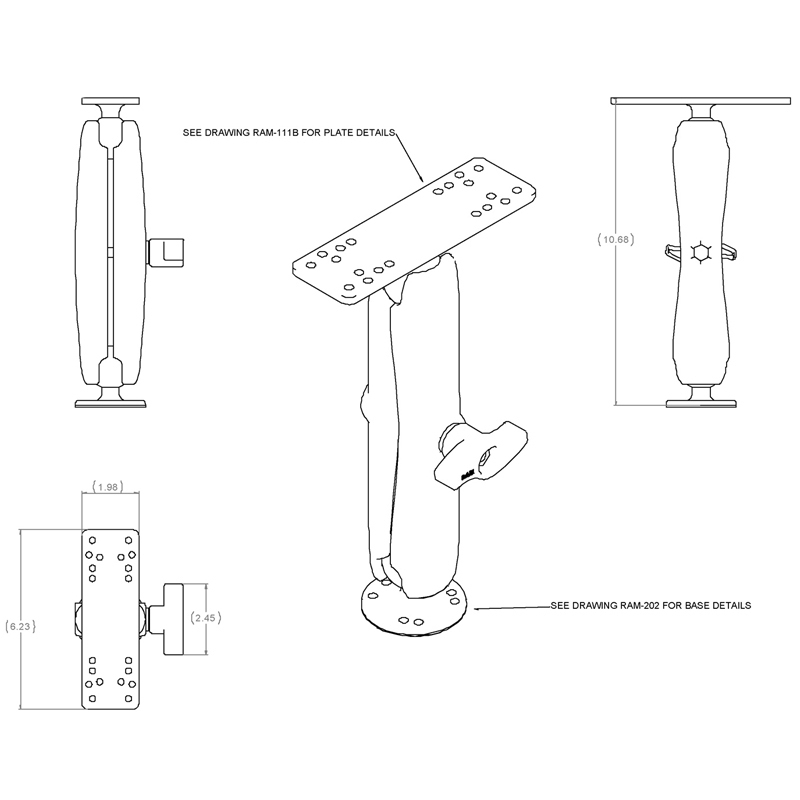

See Drawing

plate size

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter

ball size

C Size (1.5")

Compatibility

  • ECHOMAP Plus 72cv
  • ECHOMAP Plus 73cv
  • ECHOMAP Plus 74cv
  • ECHOMAP Plus 75cv
  • ECHOMAP Plus 77cv
  • ECHOMAP UHD2 5"
  • ECHOMAP UHD2 7"
  • GPSMAP 722
  • GPSMAP 722xs
  • GPSMAP 723
  • GPSMAP 723xsv
  • GPSMAP 742
  • GPSMAP 742xs
  • GPSMAP 743
  • GPSMAP 743xsv
  • Striker Plus 5cv
  • Striker Vivid 5cv
  • Striker Plus 7cv
  • Striker Plus 7sv
  • Striker Vivid 5cv
  • Striker Vivid 7cv
  • Striker Vivid 7sv
  • Fishfinders and GPS Chartplotters
